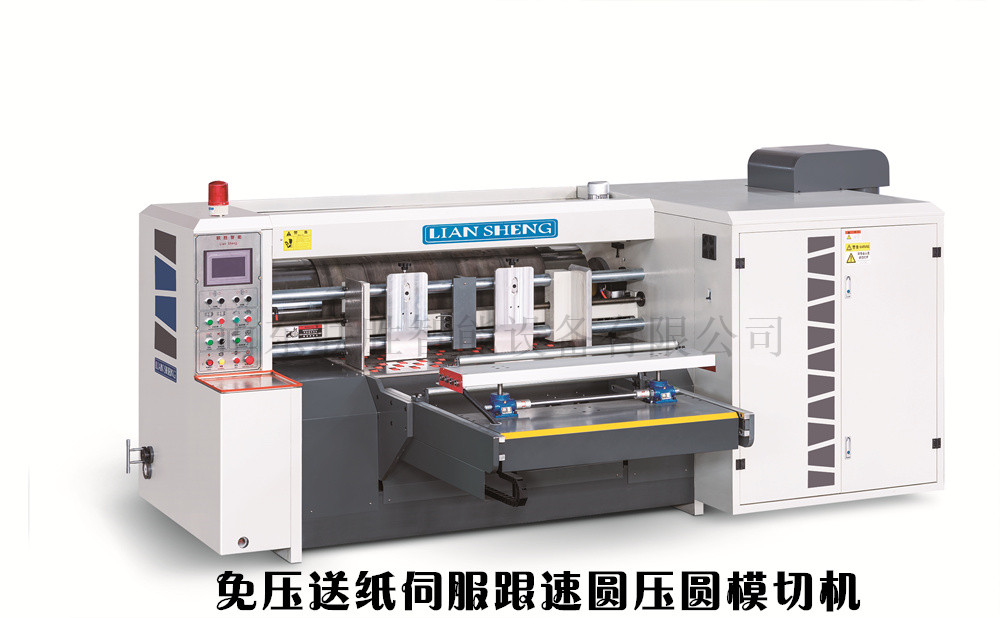

| 免壓送紙伺服跟速圓壓圓模切機 | ||||
| Non—pressure Feeding Speed Compensation Rotary Die Cutting Mahcine | ||||
|
優力膠墊（砧墊）輥采用德國伺服控制，智能調整膠墊輥的速差，保證模切紙箱產品尺寸的一致性，通過伺服電機的智能調整，不僅能解決膠墊磨損后的尺寸變化，還可以一定程度的解決刀版制作的誤差，實現紙箱尺寸的一致性。 |
Upper Anvil driven by servo system, automatically adjust the speed of the roller, to guarantee the cardboard of the same size; Capable of compensating the speed difference from the wear of the pad and rectify the errors during making the die. | |||
|
獨特設計解決模切過程中紙箱抗壓強度降低問題，有效提高抗壓強度； |
Unique design to solve the problem of cartons strength reducing in the process of feeding, effectively improves the strength of the product; | |||
| 配全球先進、穩定、精確的德國力士樂伺服控 制系統； | Adopts the advanced, stable and accurate Bosch-Rexroth Servo Control System | |||
| 前后雙風室送紙變頻調壓確保送紙更精確； | Forward and Aft vacuum chambers, vacuum adjustable by applying Frequency converter, guarantees the precision of feeding; | |||
| 先進的液壓控制軸向移動系統確保移動平穩準確 | Axial movement of the upper roller driven by hydraulic system, smooth and stable. | |||
| 自動磨削系統確保模切膠墊平整光滑 | Automatic repaire unit for the rubber pad,repaires the rubber surface, keep it smooth. | |||
| 自動噴淋潤滑系統使傳動系統壽命更長久 | Automatic spray lubricating system, improves the working condition of the whole transmiting system. | |||
| 傳動齒輪采用 20CrMnTi 滲碳處理，德國大型磨齒機精磨而成 | Transmission gears are made of 20CrMnTi with carburizing treatment and manufactured by Germen Processing Center. | |||
| 人機界面使設備調整簡單快捷 | Touch screen HMI, easy and convenient adjustment. | |||
|
進口模切膠墊使用壽命長 |
Inmported Die Cutting Rubber Pad, longer serving life. | |||
| 主要技術參數 | Parameters | |||
| 規格型號 | Model | MRF216 | MRF220 | MRF225 |
| 最高速度 | Max. Speed(Pcs/Min.) | 180 | 180 | 180 |
| 經濟速度 | Min. Speed(Pcs/Min.) | 120-160 | 120-160 | 120-160 |
| 最大模切尺寸 | Max. Feeding Size(mm) | 1380*1600 | 1380*2000 | 1380*2400 |
| 最小模切尺寸 | Min. Feeding Size(mm) | 400*600 | 400*600 | 400*600 |
| 適應紙板厚度 | Suitable Thickness(mm) | 2-11 | 2-11 | 2-11 |
| 模切精度 | Precision(mm) | ±1 | ±1 | ±1 |
| 電機總功率 | Main Power(KW) | 7.5 | 7.5 | 11 |
| 另有型號 | ||||
| MRF116 | MRF120 | MRF125 | ||
| MRF316 | MRF320 | MRF325 | ||
| MRF416 | MRF420 | MRF425 | ||
